印尼管桁架

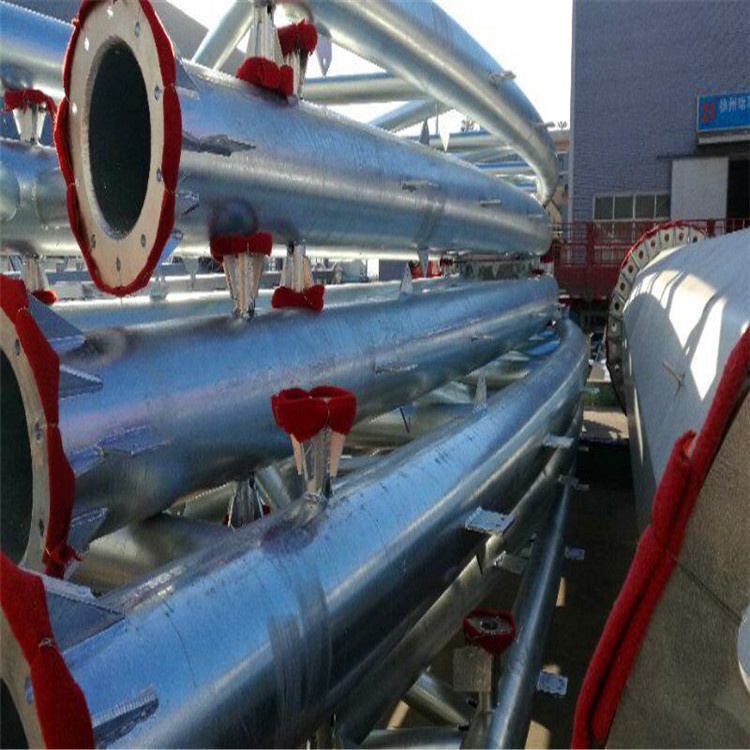

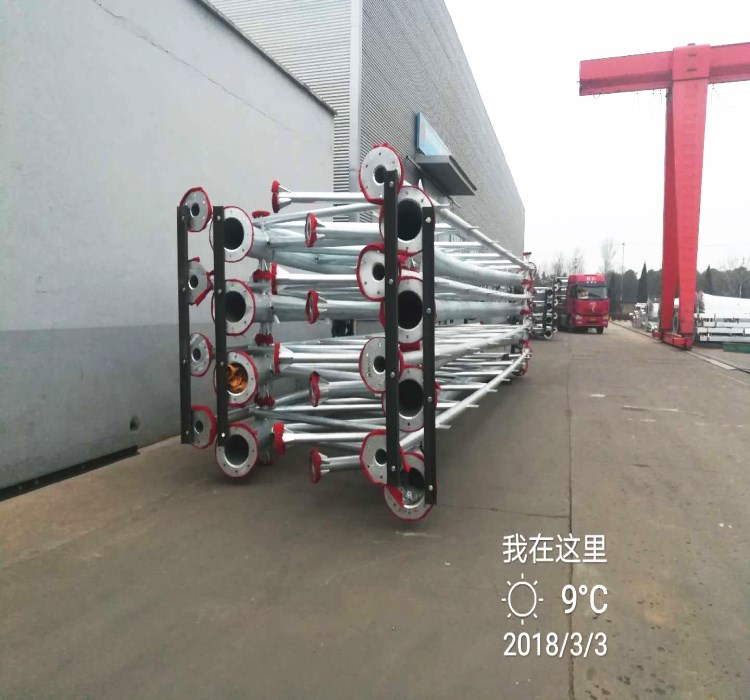

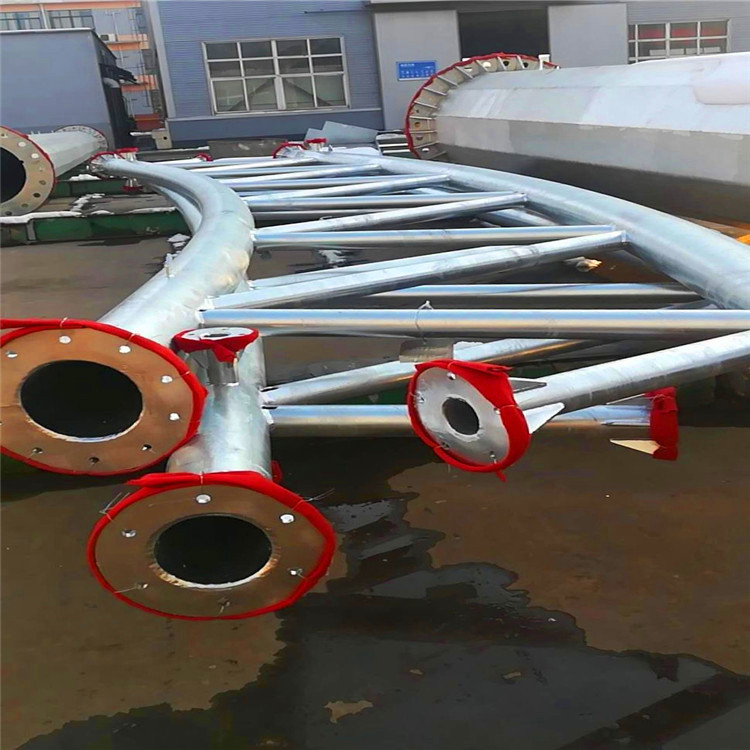

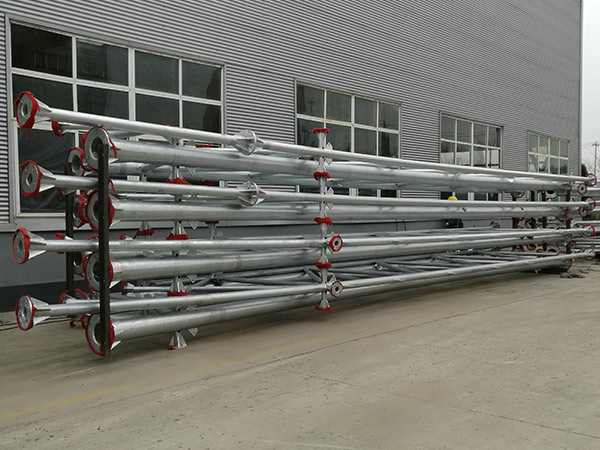

Indonesian single truss is designed by hot-dip galvanizing, with a total design area of 10,000 square meters. The section of Indonesian single truss is straight line. Simple two chords plus many middle abdominal bars.


I. Steel Truss Introduction


The steel roof truss is one of structural engineering most important elements.

The arched truss system takes advantage of structural engineerings most simple shapes, the triangle.

Therefore, steel truss structure has high bearing capacity.


roof trusses


II. Material grade


1.Carbon structural steel: Q235.

2.High-strength structural steel :Q345

3.Special purpose steel truss structure


steel roof truss design


III.The Production Process of Steel Truss


In order to guarantee the construction period and provide product quality,

the production of pipe truss needs to go through the following technological process:

Material preparation - Joining together beforehand - Welding - Correct - Blasting derusting - Spraying


steel truss design example


IV. Steel characteristics


1.Environmental protection

2.Higher reliability of steel work

3.Strong quakeproof

4.Higher degree of industrialization

5.Quick to be assembled accurately

6.Larger interior space

high quality steel truss



V. Steel Truss Advantages:


1.Long span

2.Lightweight

3.Reduced deflection (compared to plain members)

4.Opportunity to support considerable loads.

Galvanized Steel Pipe Truss Roofing

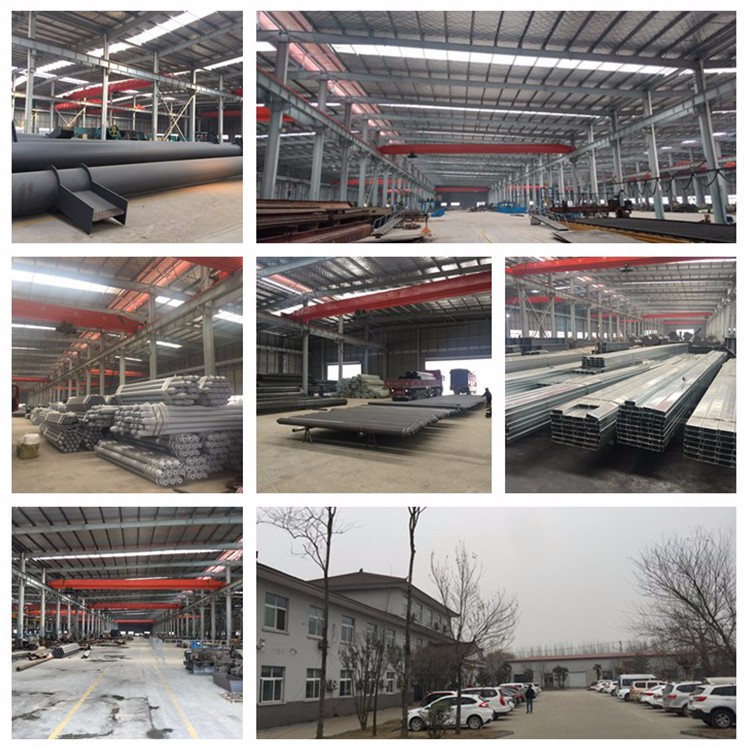

Jiangsu Andy Steel Structure Co., Ltd is not only a professional manufacturer, but also an engineering company for space frames, steel structures,

curtain walls, and membrane structures project with full capability of research, design, fabrication,construction and supervision service.

We have equipped with advanced software and system, and we have professional designers and technical engineers.




Steel Space Frame, Steel Structure, Steel pipe Truss, Membrane Structure And Curtain Wall


Port: Shanghai Port, Lianyungang Port

Supply capacity : 2000 ton per month

Delivery time : 30-45 days after receiving payment

Payment Type: T/T, L/C, D/P, D/A, Money Gram, Credit Card, PayPal, Western Union, Cash
