Steel Roofing Steel Pipe Truss for Farm Warehouse workshop

I. Steel Truss Introduction

The steel roof truss is one of structural engineering most important elements.

The arched truss system takes advantage of structural engineerings most simple shapes, the triangle.Therefore, steel truss structure has high bearing capacity.

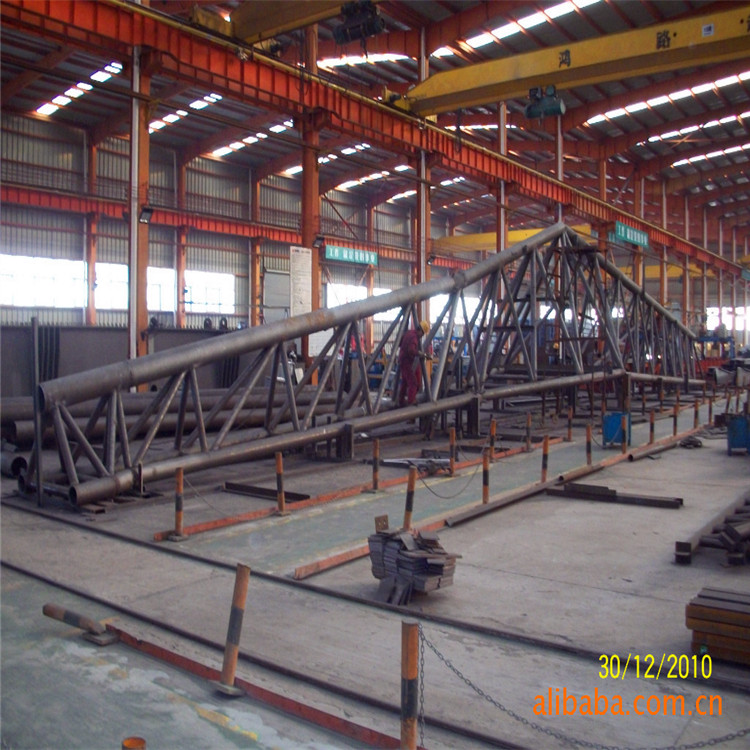

truss roof system


II. Material grade


1.Carbon structural steel: Q235.

2.High-strength structural steel :Q345

3.Special purpose steel truss structure

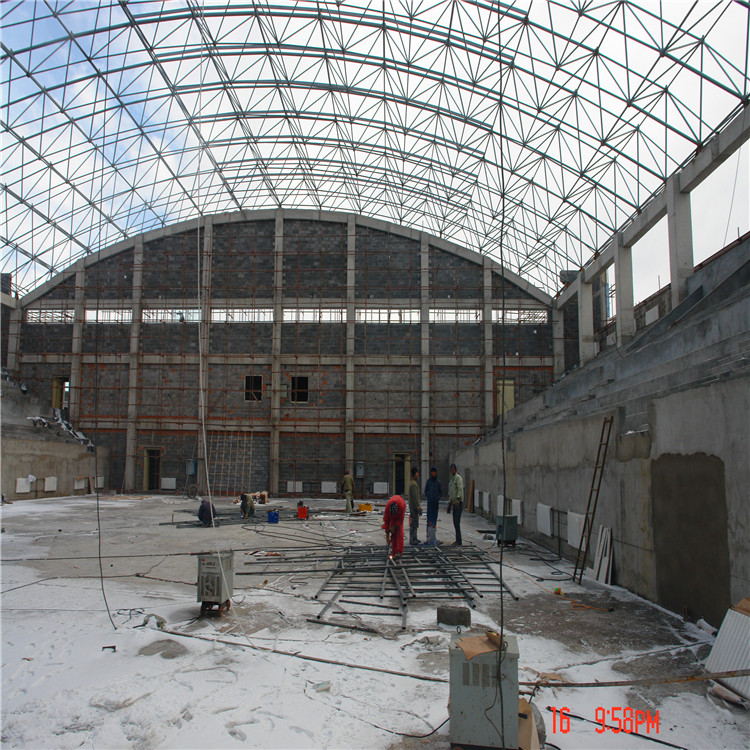

steel truss structure


III. Use of Trusses In Buildings


Trusses are used in a broad range of buildings, mainly where there is a requirement for very long spans,

such as in airport terminals, aircraft hangers, sports stadium roofs, auditoriums and other leisure buildings.

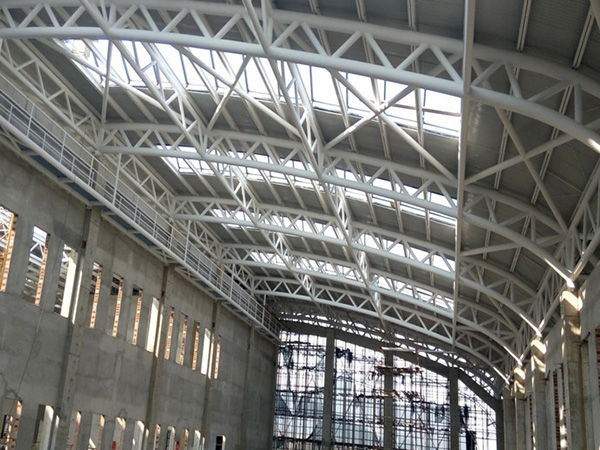

frame truss structure roofing


IV.The Production Process of Steel Truss


In order to guarantee the construction period and provide product quality,

the production of pipe truss needs to go through the following technological process:


Material preparation - Joining together beforehand - Welding - Correct - Blasting derusting - Spraying

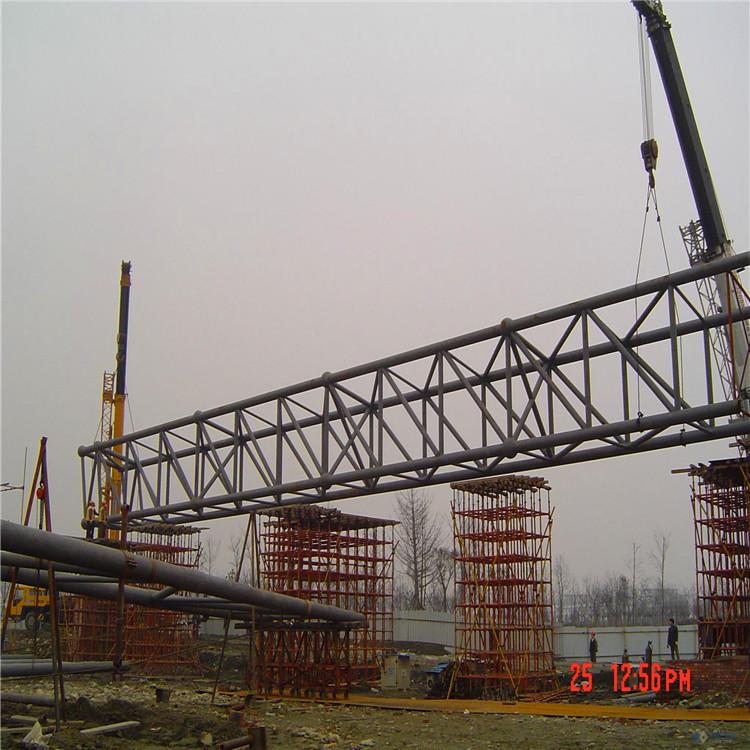

high quality roof trusses


V. Steel Truss Advantages:


1.Long span

2.Lightweight

3.Reduced deflection (compared to plain members)

4.Opportunity to support considerable loads.

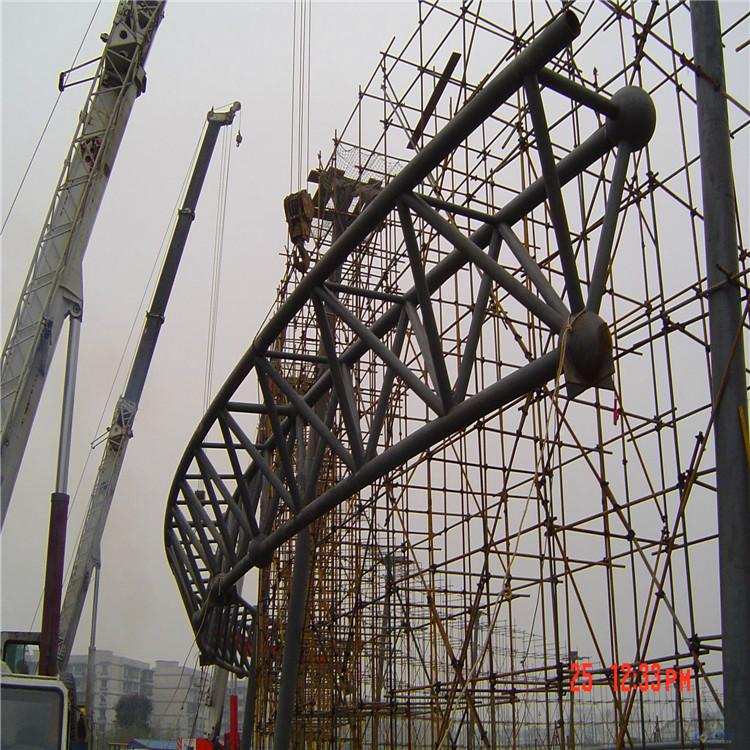

Steel pipe truss roofing system

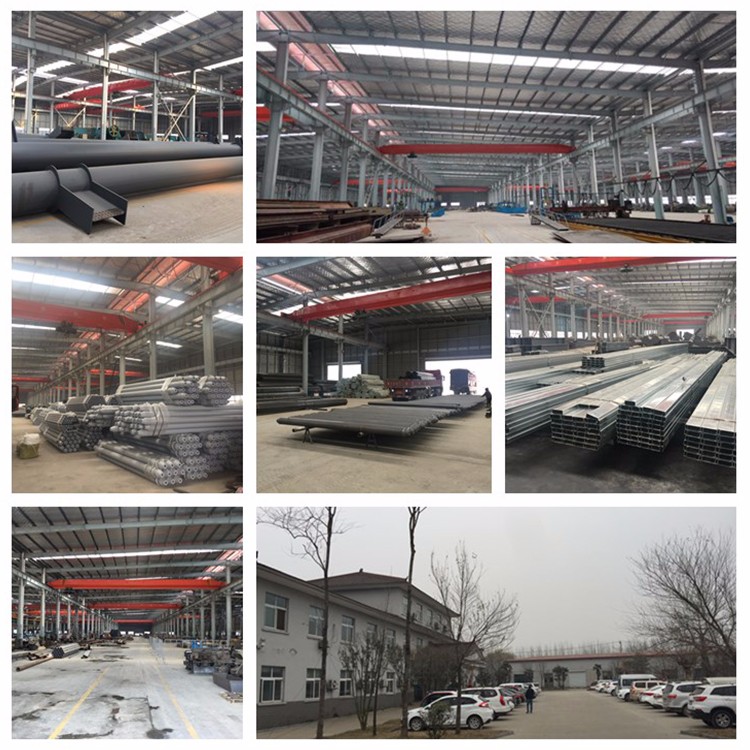

Jiangsu Andy Steel Structure Co., Ltd is not only a professional manufacturer, but also an engineering company for space frames, steel structures, curtain walls,

and membrane structures project with full capability of research, design, fabrication,construction and supervision service.

We have equipped with advanced software and system, and we have professional designers and technical engineers.



Customers From All Over The World

Top 3 Markets:  Southeast Asia      27.00%

                         Central America    17.00%

                         Domestic Market   15.00%

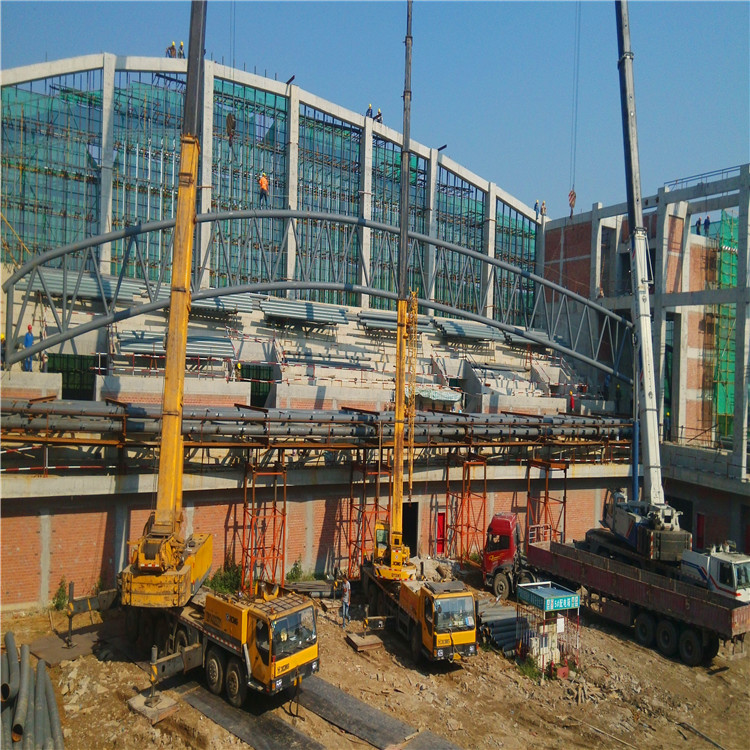

①Ordos truss structure airport

②Xinjiang truss structure gymnasium

③Nanjing truss structure bus station

④Truss structure water park

⑤Shandong truss structure exhibition center
