Steel Space Frame Construction Structures Swimming Pool Cover In China
- 1817093232@qq.com
- 0516-83897771
I. Steel Space Frame Introduction
Space frame is a spatial structure connected by several pipe and node ball upon some regular pattern of geometric figure.
It changes the ordinary frame structure of the general plane stress state, and it can be bear the loads from all sides,even though the individual pipe in damage,
it can automatically adjust the member forces, to maintain structural safely.
Arched space frame can span 150m. Space frame has standard rods and balls, so makes it easier to transport and erection.

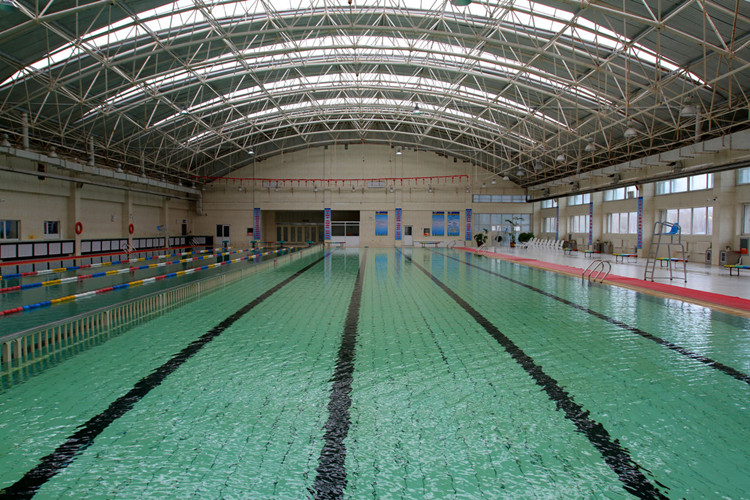

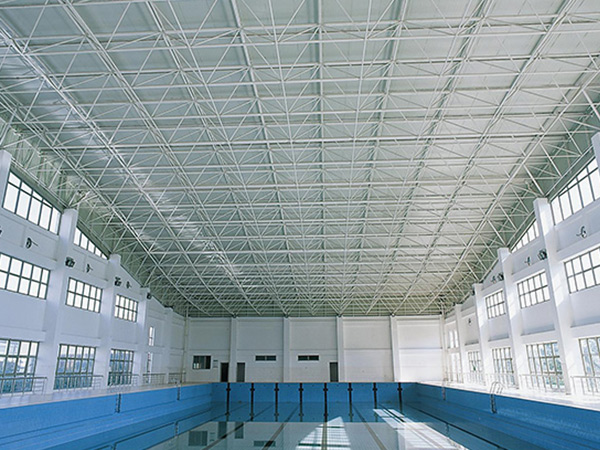

space frame swimming pool
III.Space Frame Structure Assembly
1.Steel Framework
Component: H-Column, H-Beam & C/Z-Purlin
Connection of steel structure method: Welding, Bolted
2.Surface treatment: Painting, Galvanized
3.Roof &Wall: Colored steel tiles or Colored steel sandwich panel as per request

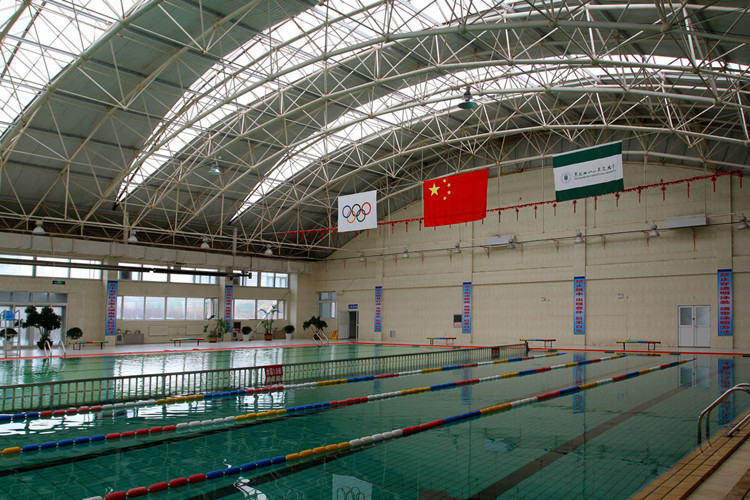

swimming pool roof design
III.Space Frame Swimming Pool Specification:
| Name | Space Frame design Swimming Pool Roof |
| Size | Customizable |
| Material | Q235 and Q345 |
| Surface | Painted or Hot Dip Galvanized |
| Installation | We can provide the complete instructions for installation, or technical support by assigning our engineer on site. |
| Packing | 1.Packing the pipes into the bundles by the steel strip 2.packing the welded steel structure parts by some fabric 3.packing the small parts by bags and EPS foam 4.packing sets parts by some box 5.Load in to 40ft GP,20ft GP or 40OT |
| Wall | Steel frame, EPS/rockwool/glasswool/PU Sandwich panel or gavalized steel sheet, Curtain wall |
| Window | PVC or Aluminum sliding window |
| Roof | EPS/rockwool/glasswool/PU Corrugated Sandwich panel or gavalized steel sheet |
| Electricity | CE Standard,Australia Standard,UL Standard |
| Gutter | Stainless steel or color steel sheet |
| Structure usage | UP to 20 years |

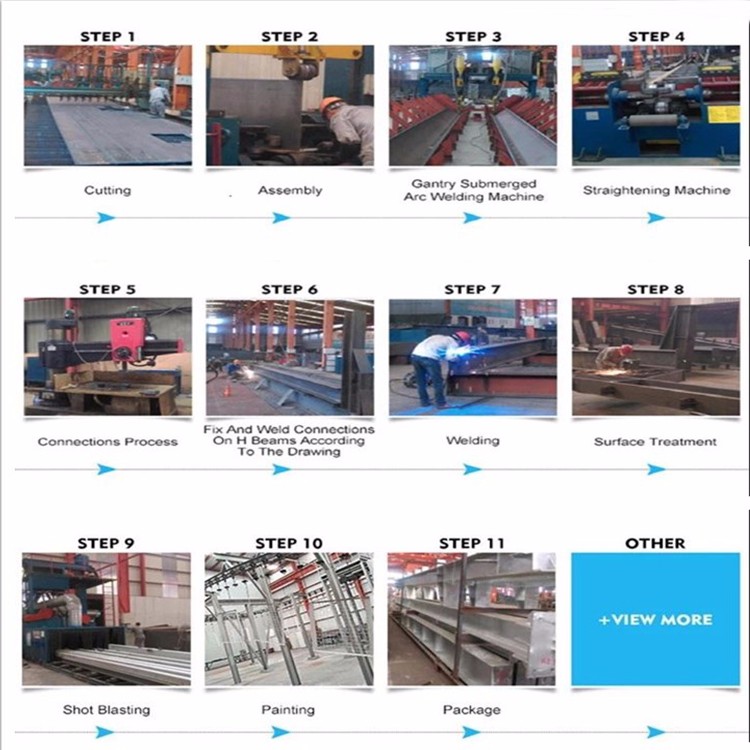

IV.Space Frame Structure Manufacturing Process:
Space Frame Node : Cutting Blanking - Welding Head - Welding Forming
Space Frame Ball: Cutting - Heating - Forging
Composition: Space Frame Node, Cover Plate, Cone Head, Space Frame Ball, Bolt Ball, Welding Rod
Jiangsu Andy Steel Structure Co., Ltd is not only a professional manufacturer, but also an engineering company for space frames, steel structures, curtain walls,
and membrane structures project with full capability of research, design, fabrication,construction and supervision service.
We have equipped with advanced software and system, and we have professional designers and technical engineers.

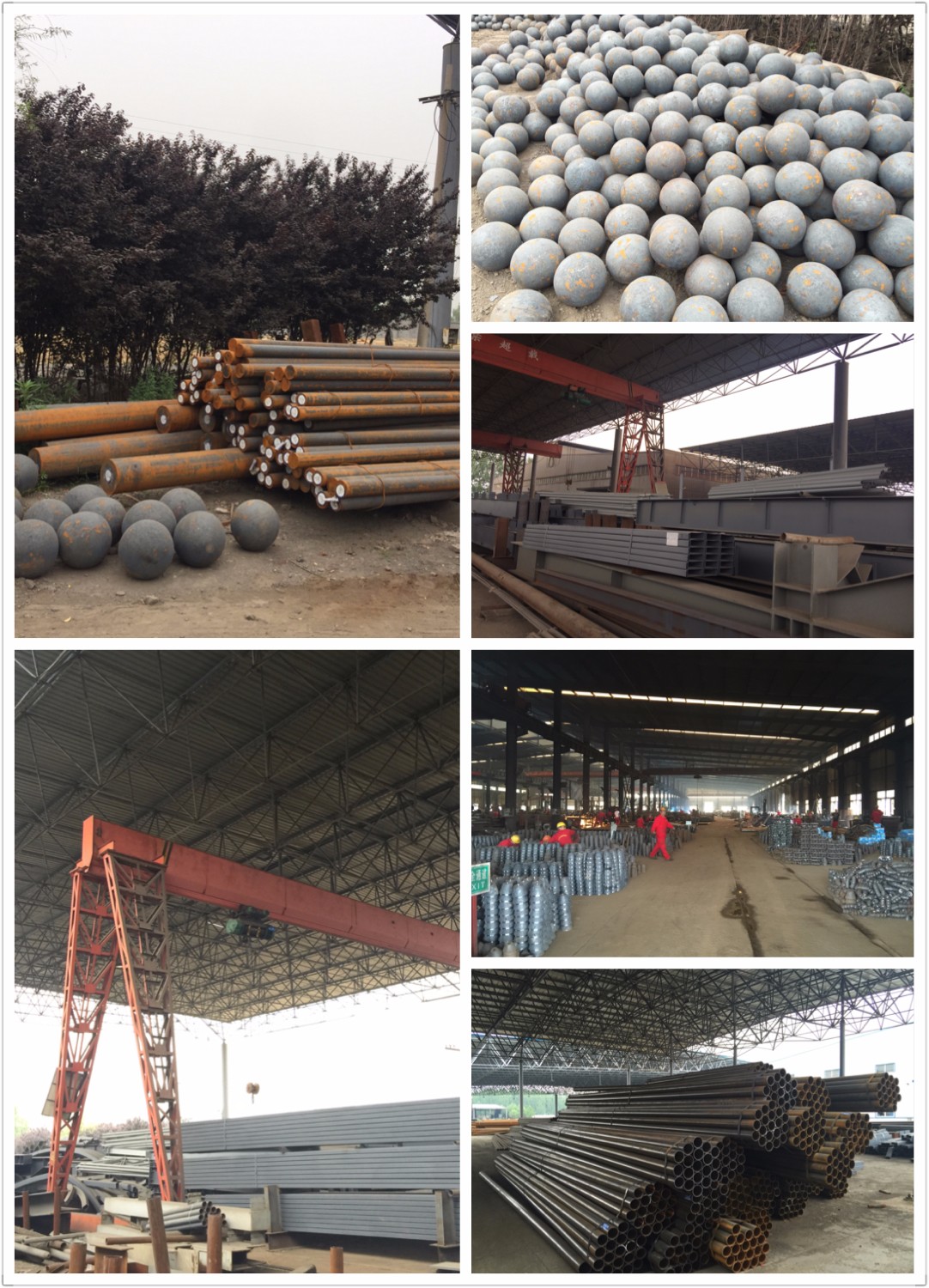

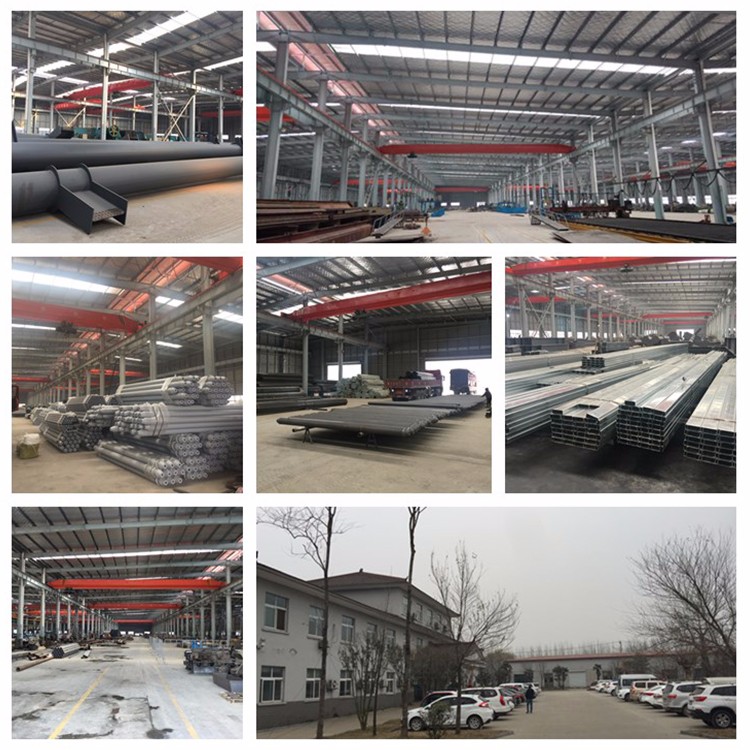

The plant is equipped with developed produce facilities.Our Annual production capacity: 36000 tons
We are involved with portal steel structures, steel space frames, curtain walls, roofs and membrane structures.
1.High strength and intensity but light weight
2.Waterproof, UV resistant, heat insulation,antiaging
3.Easy to installself-cleaning, beautiful view, Large span
Customers From All Over The World
Top 3 Markets: Southeast Asia 27.00%
Central America 17.00%
Domestic Market 15.00%
Port: Shanghai Port, Lianyungang Port
Supply capacity : 2000 ton per month
Delivery time : 30-45 days after receiving payment
Payment Type: T/T, L/C, D/P, D/A, Money Gram, Credit Card, PayPal, Western Union, Cash
