印尼发电厂

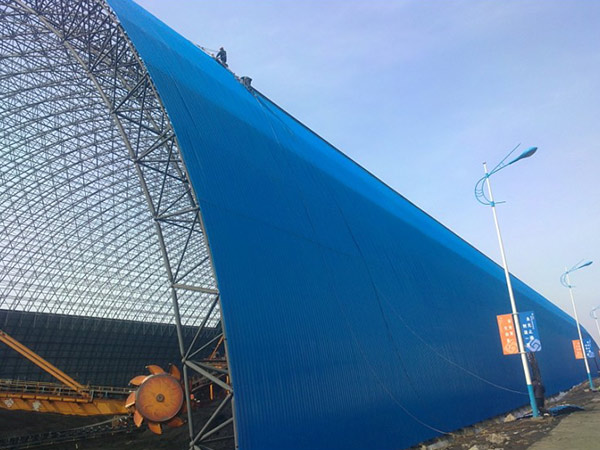

The roof of Indonesian coal shed is covered with colored steel plate and designed with bolted spherical grid. It is used in coal shed of power plant with a floor area of 18 314 square meters.




1,High strength and intensity but light weight
2,Waterproof, UV resistant, heat insulation,anti-aging

3,self-cleaning, beautiful view
4,Easy to install



Description:



*Material: ECO,PVC,Hegtex



*Surface: use PVC coated



*Dimension: Customerize design   .



Advantage:

1. Recognized quality with low price

 2.A shorter construction period

3. Greater span of the building space

4.Easy to clean.not be rusty & rotted

5. Seurity: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake

6. Waterproof, UV resistant, anti-rust and flame retardant

7.Large span:The largest span of Tension membrane structures can exceed to 200m.

. Material grade

 1.Carbon structural steel: Q235.

 2.High-strength structural steel :Q345

 3.Special purpose steel t

Quality standard

 1.Certificate: ISO9001:2000

 2.Code for design of steel structure: GB 50017-2003

 3.Technical code of cold-formed thin-wall steel structure: GB50018-2002

 4.Load code for the design of building structures. GB 50009-2006

 5.Construction quality acceptance of steel: GB50205-2001

 6.Code for design, construction and acceptance of high strength for steel  structure, JGJ82-2011

 7.Technical specification for welding of steel structure building: JGJ 81-2002

 8.Technical specification for steel Structures of tall buildings: (JGJ99-98)

. Structure Assembly

1.Steel Framework:

   Component: H-Column, H-Beam & C/Z-Purlin

   Connection of steel structure method: Welding, Bolted

2.Surface treatment: Painting, Galvanized

3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per request

4.Doors: Rolling or Pushing, as reques.

IV Steel characteristics

1.Environmental protection

2.Higher reliability of steel work

3.Strong quakeproof Light Steel Structure Prefabricated Home

4.Higher degree of industrialization

5.Quick to be assembled accurately

6.Larger interior space

121

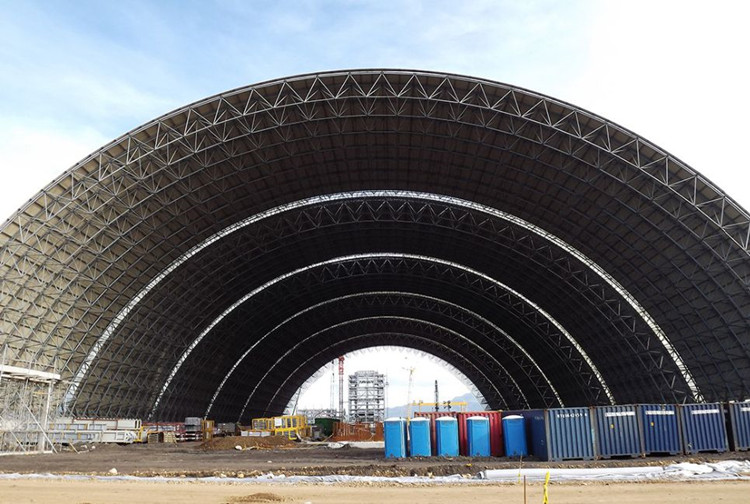

In process of Steel space frame for dome roof of the coal storage silo

2





Steel space frame for dome roof of the coal storage silo we have complted in the world

1 (2)1
