The terminal building of Erdos Airport is designed with truss and truss, with a total area of 47200 square meters.
I. Steel Truss Introduction
The steel roof truss is one of structural engineering most important elements.
The arched truss system takes advantage of structural engineerings most simple shapes, the triangle.
Therefore, steel truss structure has high bearing capacity.
frame truss railway station
II. Material Grade
1.Carbon structural steel: Q235
2.High-strength structural steel :Q345
3.Special purpose steel truss structure

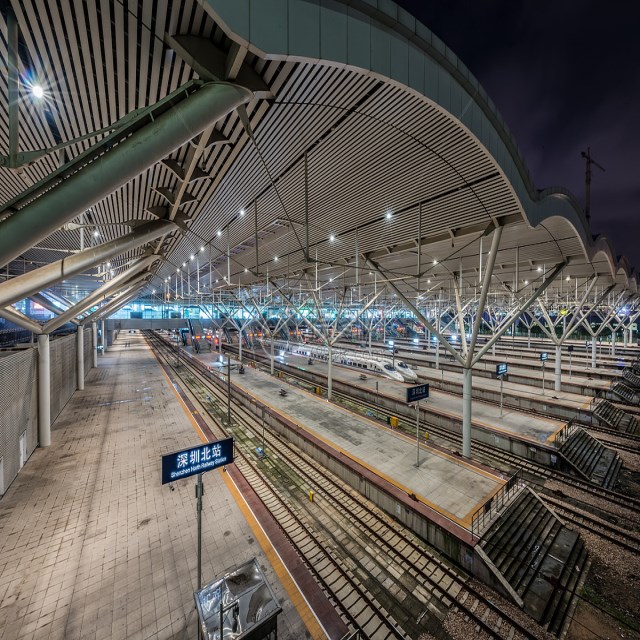

steel truss structure train station
III.The Production Process of Steel Truss
In order to guarantee the construction period and provide product quality,
the production of pipe truss needs to go through the following technological process:
Material preparation - Joining together beforehand - Welding - Correct - Blasting derusting - Spraying
roof trusses system
IV. Steel characteristics
1.Environmental protection
2.Higher reliability of steel work
3.Strong quakeproof
4.Higher degree of industrialization
5.Quick to be assembled accurately
6.Larger interior space
steel truss
V. Steel Truss Building Construction Specification
①Steel Truss Advantages
1.Long span
2.Lightweight
3.Reduced deflection (compared to plain members)
4.Opportunity to support considerable loads.
| Material | Mild Steel; Stainless Steel |
| Coating | Spray Painting; Galvanization;Powder Coated |
| Color | Blue; Green; Darkgray; Client's Request |
| Steel code | Q235-B; Q345-B; Stainless steel |
| Fabrication | Advanced Automatic Welding Machines |
| Quality control | GB/T19001-2000----ISO9001:2000 |
| Advantages | 1.Stable and Aesthetic 2.Structure is durable for 50years 3.Fast and easy to install 4.Extensive Applications: Storage, Warehouse, Exhibition Hall,Terminal Building, Stadium, Theater, Special-shaped Buildings, etc 5.High anti-rust performance 6.Flexible composition: Doors and Day-lighting roof could be installed at any position |

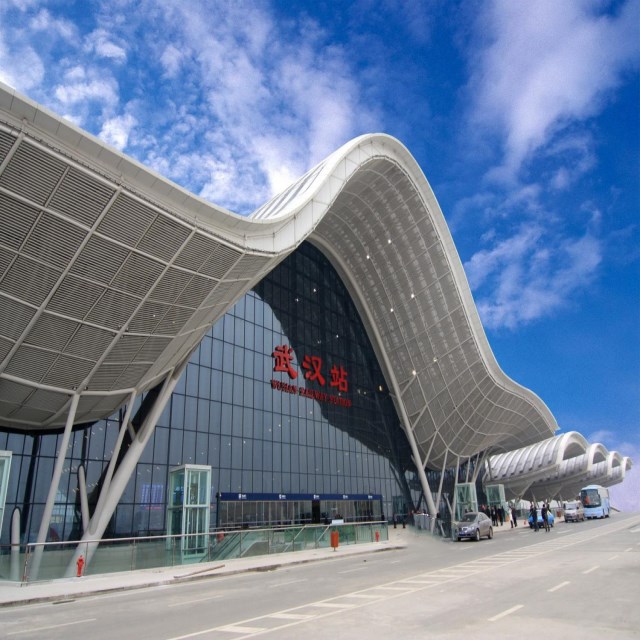

Steel Curved Truss Railway Station Roof

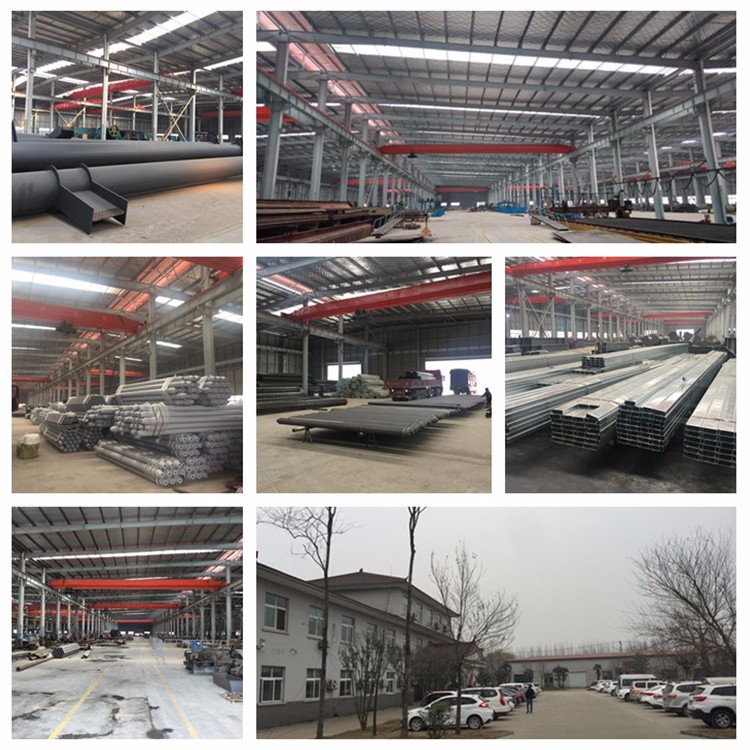

Jiangsu Andy Steel Structure Co., Ltd is not only a professional manufacturer, but also an engineering company for space frames, steel structures, curtain walls,
and membrane structures project with full capability of research, design, fabrication,construction and supervision service.
We have equipped with advanced software and system, and we have professional designers and technical engineers.

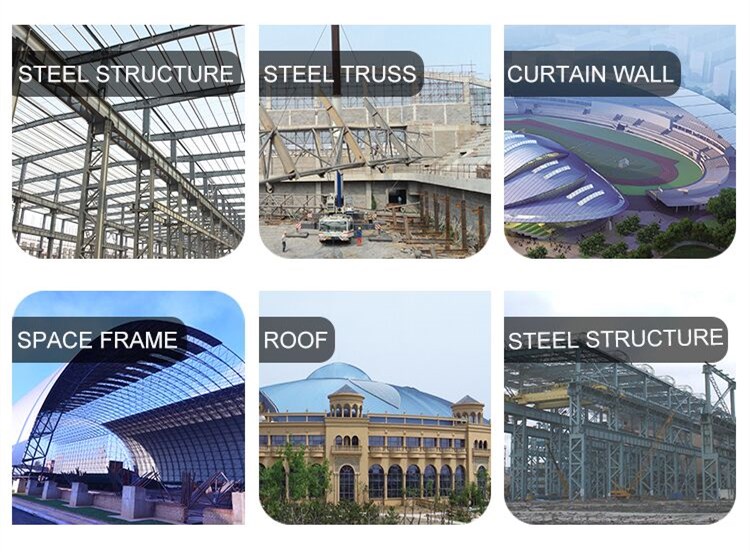

Steel Space Frame, Steel Structure, Steel pipe Truss, Membrane Structure And Curtain Wall
①Ordos truss structure airport
②Xinjiang truss structure gymnasium
③Nanjing truss structure bus station
④Truss structure playground
⑤Shandong truss structure exhibition center
⑥Truss structure toll station
Port: Shanghai Port, Lianyungang Port
Supply capacity : 2000 ton per month
Delivery time : 30-45 days after receiving payment
Payment Type: T/T, L/C, D/P, D/A, Money Gram, Credit Card, PayPal, Western Union, Cash
