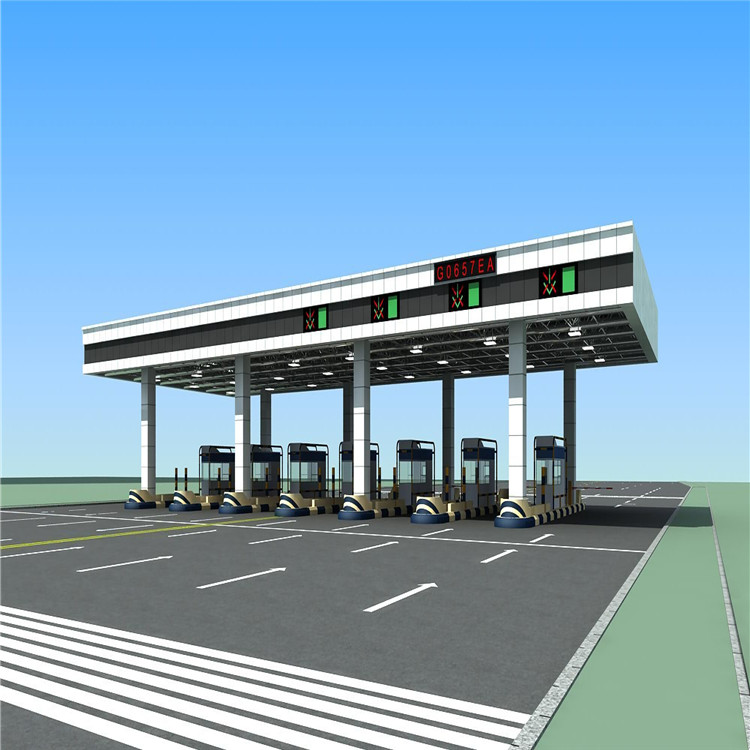

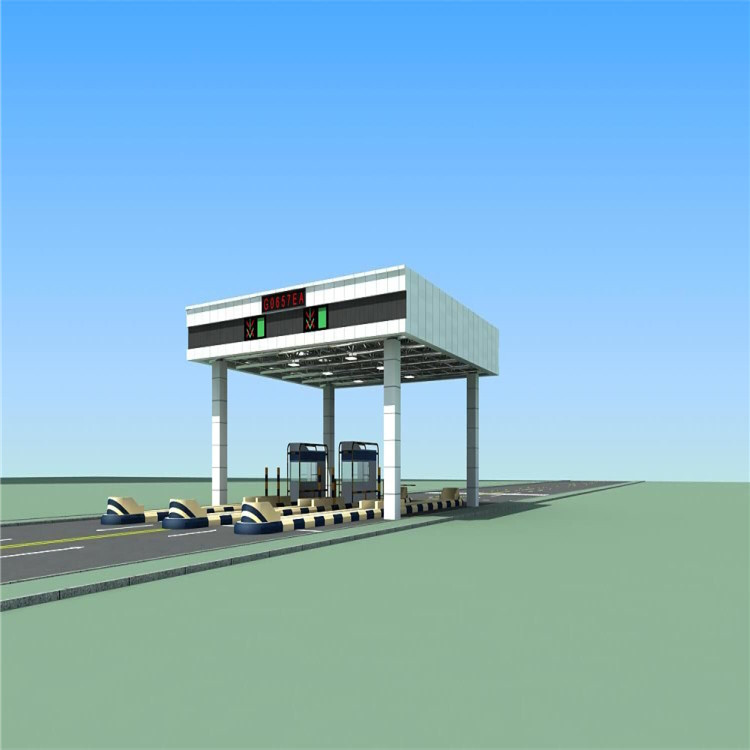

Tajikistan Toll Station is a project of decorating aluminum-plastic sheet with steel grid structure, including nine toll stations with a total area of 9000 square meters.
Steel bolted ball Structure toll station roof
I.What Is Space Frame Structure
Steel space frame is constitute with steel rods and joint balls. It’s suit to big span buildings, like airports, storages, stadiums.
Arched space frame can span 150m. Space frame has standard rods and balls, so makes it easier to transport and erection.
bolted ball structure
II.How To Design and Manufacture

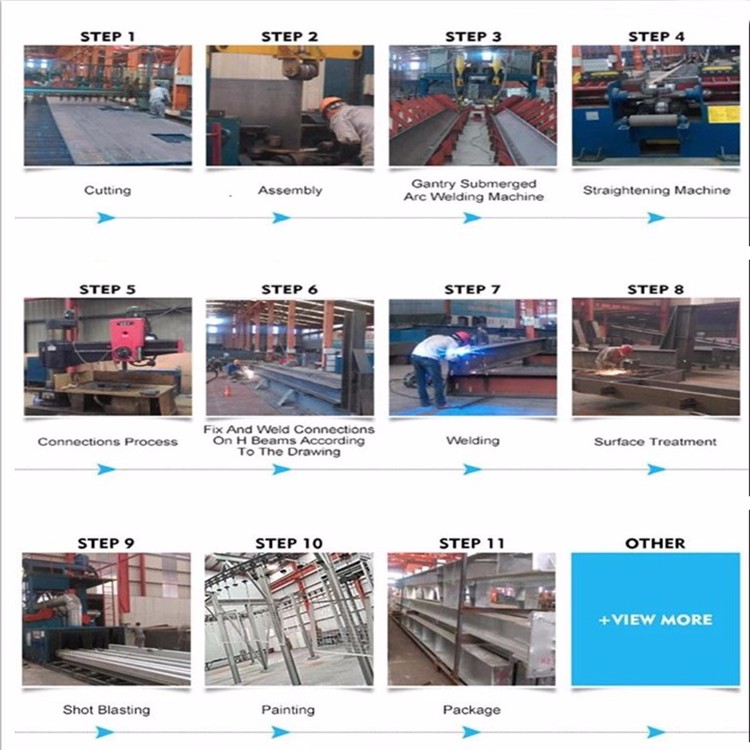

Space Frame Node : Cutting Blanking - Welding Head - Welding Forming
Space Frame Ball: Cutting - Heating - Forging
Composition: Space Frame Node, Cover Plate, Cone Head, Space Frame Ball, Bolt Ball, Welding Rod
III.Space Frame Roof Specification
Specification | Structure type | Space frame |
Design standard | AISI/ASTM/BS/DIN/GB/JIS | |
Length | With customer's requirement | |
Width | Single span,double-span,multi-span | |
Height | With customer's requirement | |
Components | Bolt ball: | Steel grade 45 |
Column | Q235B, Q345B welded H section steel | |
Beam | Q235B, Q345B welded H section steel | |
Tube: | Steel Q235B, Q345B | |
High strength bolt: | Cr 40, 10.9S, 9.8S, galvanization | |
Sleeve: | Steel Q235B, Q345B & 45, galvanization | |
Purlin: | Q235B C channel or Z channel, galvanization | |
Roof & Wall panel: | Sandwich panels,Corrugated steel sheet,FRP sheet |
IV.The Advantages of Steel Space Frame
1.High strength and intensity but light weight
2.Waterproof, UV resistant, heat insulation,antiaging
3.Easy to installself-cleaning, beautiful view, Large span
steel space frame bolted ball Structure toll station roof cover
Jiangsu Andy Steel Structure Co., Ltd is not only a professional manufacturer, but also an engineering company for space frames, steel structures, curtain walls,
and membrane structures project with full capability of research, design, fabrication,construction and supervision service.
We have equipped with advanced software and system, and we have professional designers and technical engineers.
Steel Space Frame, Steel Structure, Steel pipe Truss, Membrane Structure And Curtain Wall
Customers From All Over The World
Top 3 Markets: Southeast Asia 27.00%
Central America 17.00%
Domestic Market 15.00%
Port: Shanghai Port, Lianyungang Port
Supply capacity : 2000 ton per month
Delivery time : 30-45 days after receiving payment
Payment Type: T/T, L/C, D/P, D/A, Money Gram, Credit Card, PayPal, Western Union, Cash
