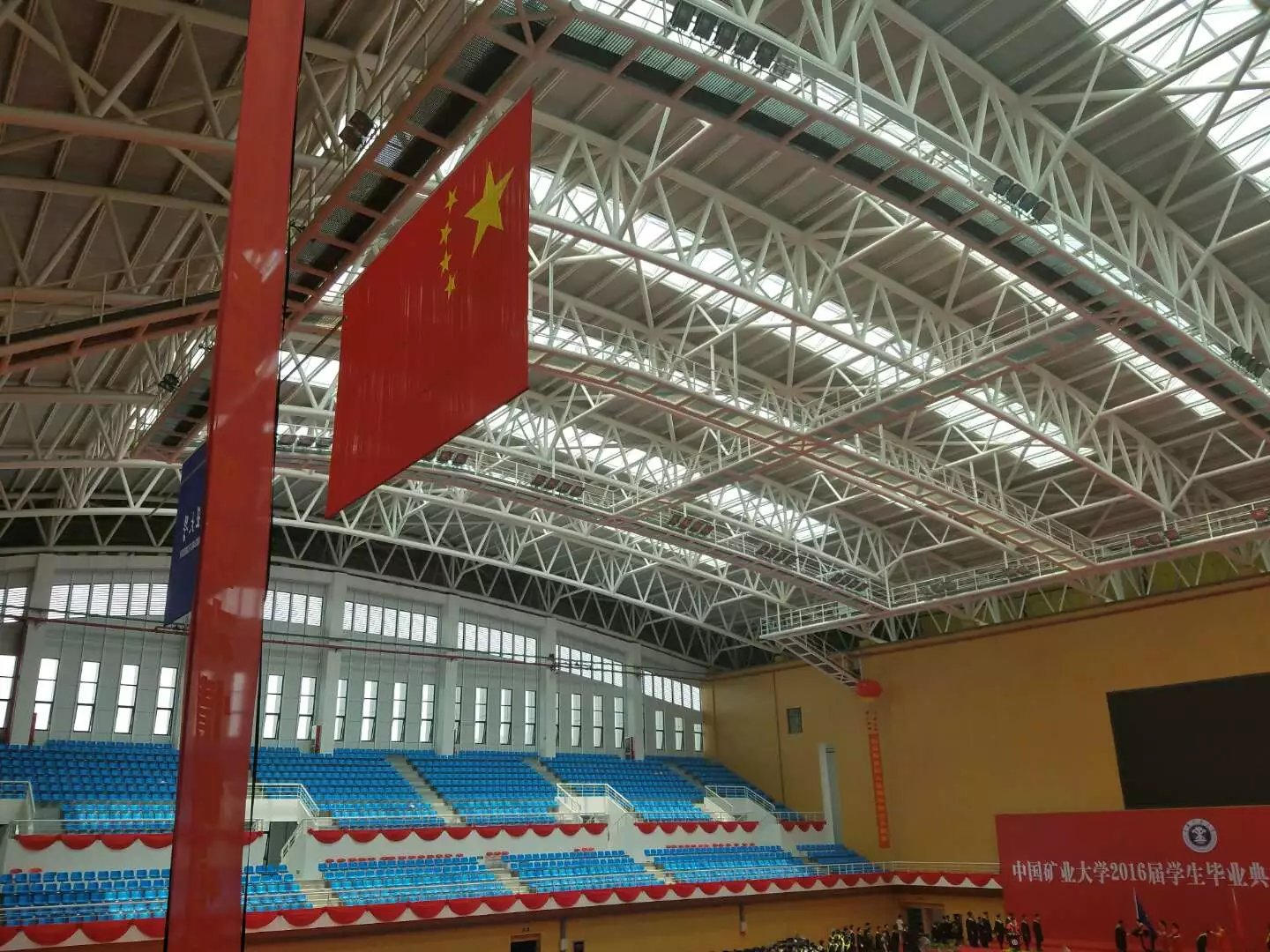

The training hall, comprehensive gymnasium and swimming pool of Mine University all adopt truss structure. The total floor area is 19 000 square meters. The roof is made of aluminium, magnesium and manganese, and the wall is made of glass and aluminium veneer curtain wall.
I. What Is Steel Truss
The steel roof truss is one of structural engineering most important elements.
The arched truss system takes advantage of structural engineerings most simple shapes, the triangle.Therefore, steel truss structure has high bearing capacity.
steel roof trusses roofing
II. Use of Trusses In Buildings
Trusses are used in a broad range of buildings, mainly where there is a requirement for very long spans,
such as in airport terminals, aircraft hangers, sports stadium roofs, auditoriums and other leisure buildings.
steel trusses philippines
III.The Production Process of Steel Truss
In order to guarantee the construction period and provide product quality,
the production of pipe truss needs to go through the following technological process:
Material preparation - Joining together beforehand - Welding - Correct - Blasting derusting - Spraying
used steel trusses for sale
IV. Steel Truss Advantages:
1.Long span
2.Lightweight
3.Reduced deflection (compared to plain members)
4.Opportunity to support considerable loads.
design of roofing steel truss
V. Steel Truss Building Construction Specification
The advantages of light steel structure :
1.Economic : quick installed and saving the cost of construction
2.Reliable quality: mainly produced in the factory and control the quality
3.big space: the max span of prefab steel structure can reach 80meters
4.Antiseismic: because the weight is light
5.Flexible: can be dismantled and enlarged
6.Beautiful appearance: can use different colors
7.Long lifespan: can be used more than 50 years
Main steel frameMaterial: | H section steel beam and columns, painted or Hot-dip galvanized |
Secondary frame : | Hot-dip galvanized C/Z purlin, steel bracing, tie bar, knee brace, edge cover etc |
Roof panel : | EPS sandwich panel , glass fiber sandwich panel , rock wool sandwich panel , and PU sandwich panel or Single steel sheet |
Wall panel : | Sandwich Panel or Corrugated Steel Sheet |
Tie Rod: | Circular Steel Tube |
Brace: | Round Bar |
Knee Brace: | Angle Steel |
Roof Gutter: | Color Steel Sheet or galvanized plate sheet |
Rainspout: | PVC Pipe |
Door: | Sliding Sandwich Panel Door or Rolling Metal Door |
Windows: | PVC/Aluminum Alloy Window |
Connecting: | High strength bolts |
Packing: | There are a steel holder to support all steel members |
Drawing: | We can make the design and offer according to your requirement or your drawing |
Galvanized steel pipe truss

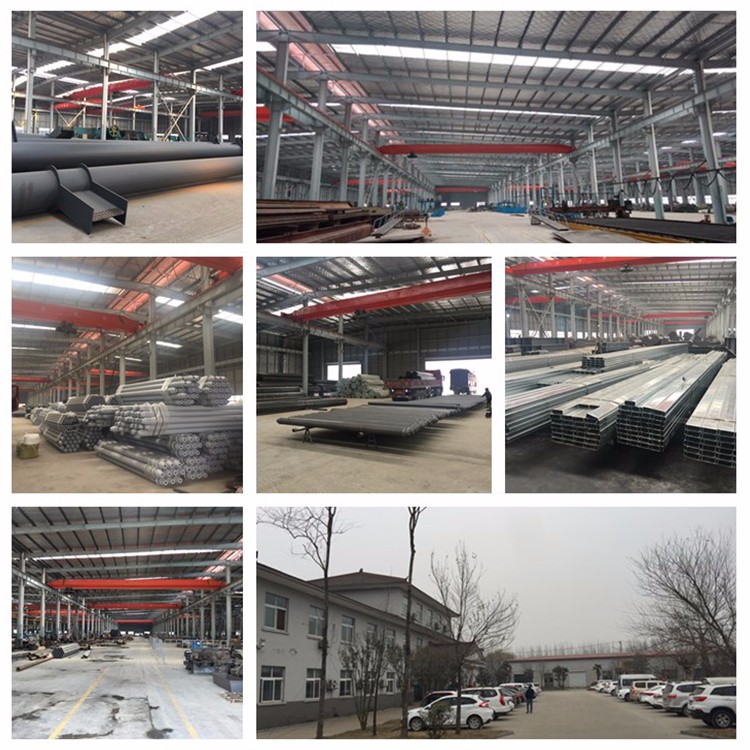

Jiangsu Andy Steel Structure Co., Ltd is not only a professional manufacturer, but also an engineering company for space frames, steel structures, curtain walls,
and membrane structures project with full capability of research, design, fabrication,construction and supervision service.
We have equipped with advanced software and system, and we have professional designers and technical engineers.
Customers From All Over The World
Top 3 Markets: Southeast Asia 27.00%
Central America 17.00%
Domestic Market 15.00%

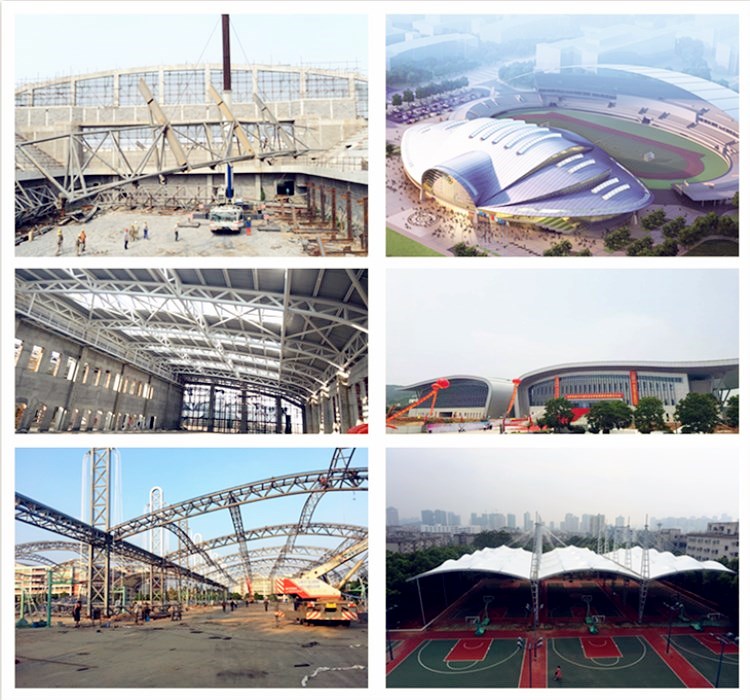

①Ordos truss structure airport
②Xinjiang truss structure gymnasium
③Nanjing truss structure bus station
④Truss structure water park
⑤Shandong truss structure exhibition center
Port: Shanghai Port, Lianyungang Port
Supply capacity : 2000 ton per month
Delivery time : 30-45 days after receiving payment
Payment Type: T/T, L/C, D/P, D/A, Money Gram, Credit Card, PayPal, Western Union, Cash
